Pallet Rack Decking Used Across 3 Beams

Pallet rack decking used across 3 beams
Category:

Pallet rack decking,also named wire mesh decking, provides a storage solution for the pallet rack.It is a product designed exclusively to provide the ability to store split case and open case items,also provide the increased stability and protection for goods.

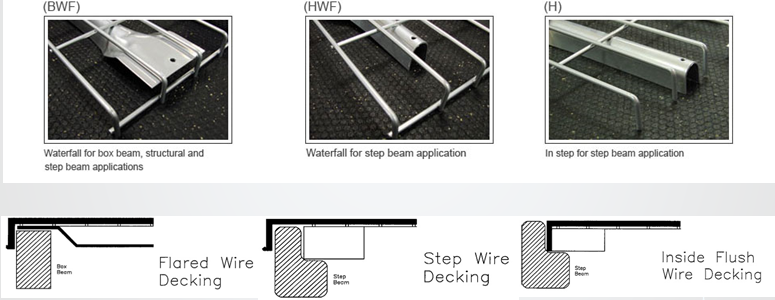

Popular types of pallet rack decking design

wire mesh decking for box beam pallet racking

pallet rack decking design vaires for different types of pallet racking beam section

Features of pallet rack decking

1. Provides the storage deck solution for the pallet rack system.

2. Easy to install

3. Helps meet the fire code standards

4. Makes loading different types and sizes of pallets safer and easier

5. Allows for hand stacking of products

6. Improves the visibility of the inventory

7. Makes the most of available lighting

8. Cuts down the dust accumulation in warehouse

9. Durable

10. Finish available – zinc plate,hot dipped galvanize,powder coating

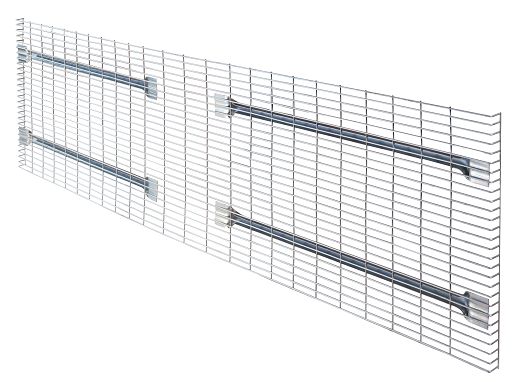

Pallet rack decking used across 3 or 4 beams are customized per the specification application purpose

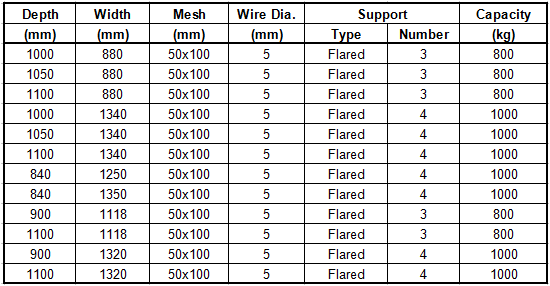

Standard specifications of pallet rack decking

Stanard specification of wire mesh decking with flared support

Stanard specification of pallet rack decking with flared support

Customized specificaiton and design

Pallet rack decking is normally designed per the specification of pallet racking systems,welded wire mesh structure.Any customized specifications or special designed for particular application are all acceptable.

Pallet rack decking accessaries

Accessaries which are used together with pallet rack decking on pallet racking system are available to supply,such as,

Middle dividers

Back stops

Any other parts of specific requirements

Packing & shipping

1. Packing: wood pallet packing(steel pallet) and shrink wrapped with four corners of each pallet protected to prevent from damaging

2. Shipping: the optimized way will be used to ship the pallet rack deckings based on the order quantity,normally the unit shipping cost is LCL > 20′ load > 40′ load > 40’HQ load

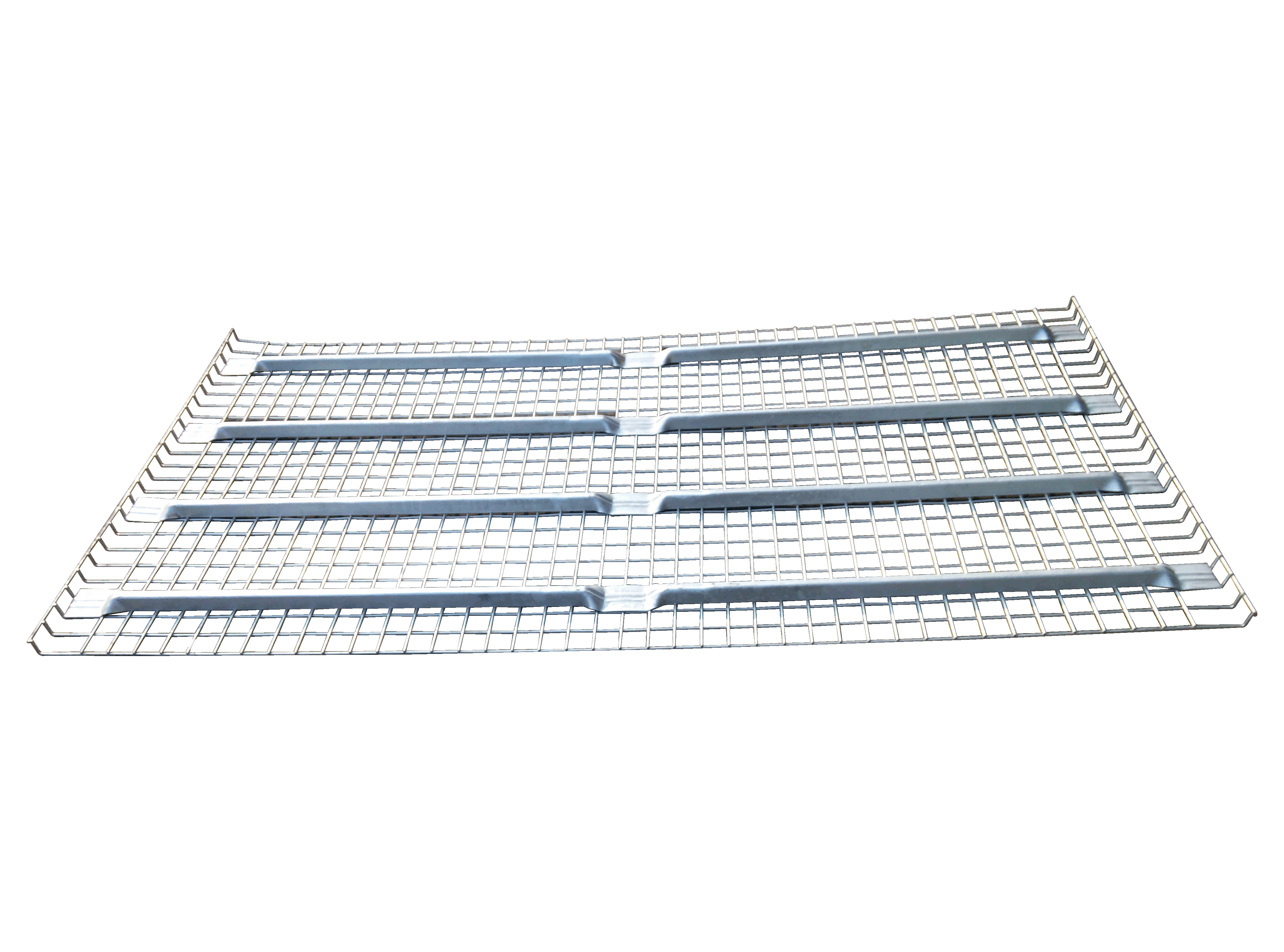

Wire decking used across 4 beams

Pallet rack decking used across 4 beams
